Rider run configurations

It is possible to have Cake tasks as run configurations:

Run configurations

Currently only run configurations are supported. Debug configurations are not supported.

Configuring run configurations

In order to use the run configurations you must have Cake installed on your machine or in your solution.

Install Cake

To use Cake .NET Tool it needs to be installed globally:

dotnet tool install --global Cake.Tool

This is the default setup in Cake for Rider. Alternatively it is also possible to use a project local installation of the Cake .NET Tool.

There is currently no support for run configurations for Cake Frosting.

Supported runners

Runner Supported Remarks
Cake .NET Tool
Cake Frosting

Settings

There are multiple configuration settings available under File | Settings | Build, Execution, Deployment | Cake.

All settings are project - specific and stored in the .idea folder. To share settings across developers, make sure to put CakeRider.xml under source control.

Generic settings

  • Task Regex This regular expression is used to parse tasks from the Cake files. Default: Task\s*?\(\s*?"(.*?)"\s*?\)
  • Verbosity This is the default verbosity to use, when running a task directly from the Cake Tasks window or when creating a new run configuration. Default: normal

Search paths

Allows to modify search paths that are used to find all Cake files that are displayed in the Cake Tasks window.

  • Search paths One or multiple starting points to search for Cake files. The paths are relative to the project root and should use / as separator between directories. Default: . (root of the project directory.)
  • Exclude expressions Regular expressions to exclude search paths. Each path that is found during the search is matched against all configured expressions. Matches will be excluded. Default: .*/tools/.*

Runner settings

Allows to define the runner to use.

The first option, Use 'dotnet cake' instead of executable, will use dotnet cake as the runner. The dotnet executable must be in available in the path and the Cake .NET Tool must either be globally installed to the machine or locally installed to the project. If this option is set, all other options on the settings page are ignored.

Alternatively, when Use 'dotnet cake' instead of executable is not set, a path to the Cake executable (either dotnet-cake.exe, or cake.exe) has to be supplied:

Different runners for different operating systems can be set by defining a regular expression which is matched against the system property os.name.

The Cake runner settings are able to process environment variables: Use a specific variable like ${VARIABLE} and the environment variable will be expanded when the runner is called.

Default value is ~/.dotnet/tools/dotnet-cake and ${USERPROFILE}\.dotnet\tools\dotnet-cake.exe for Windows.

Using run configurations

Creating run configurations

The configurations can either be created from an existing Cake task, using the Cake Tasks window or created manually using the run configuration editor.

Editing run configurations

An editor for run configurations is available:

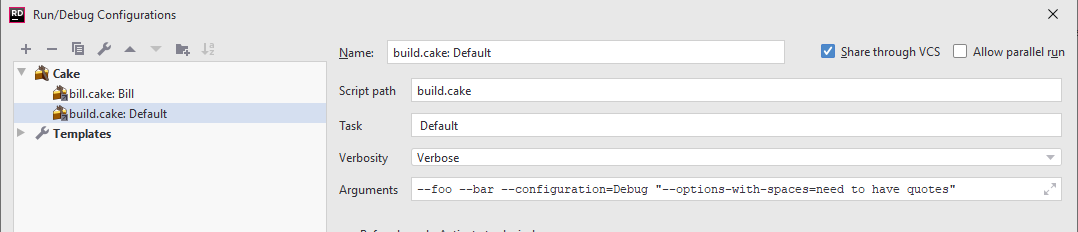

Run configuration editor

Settings in the run configuration

  • Script path: Path to the Cake file. (This is passed as first argument to the runner.)
  • Task: Name of the task to run (This is passed to the runner using --task=<Task>.)
  • Verbosity: Verbosity of the Cake output. (This is passed to the runner using --verbosity=<Verbosity>.)
  • Arguments: Arbitrary additional arguments to the runner.

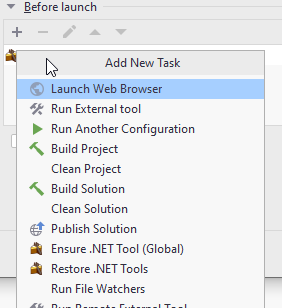

Before launch activity

  • Ensure .NET Tool (Global): Ensures the Cake .NET tool is installed globally before running Cake.
  • Restore .NET Tools: Restores the .NET tools, effectively calling dotnet tool restore before running the build.

Run Actions

Running builds directly

The Cake Tasks window lists all Cake scripts and their tasks:

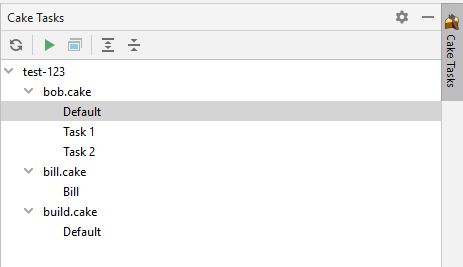

Cake Tasks window

Using a double click on a task will run that task immediately:

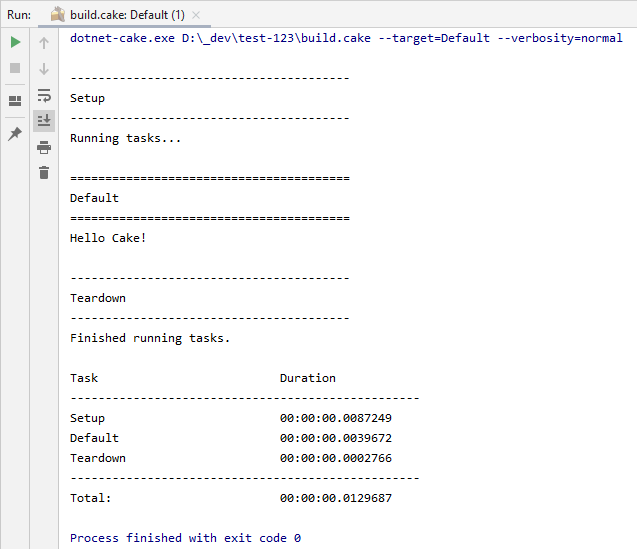

Cake task run

Alternatively, the buttons at the top of the Cake Tasks window can be used to either run the task immediately, or create a new run configuration.
